Home Docs Manuals Hub

V1 Wiring Diagrams

V1 Wiring Diagrams

Updated on Oct 14, 2025

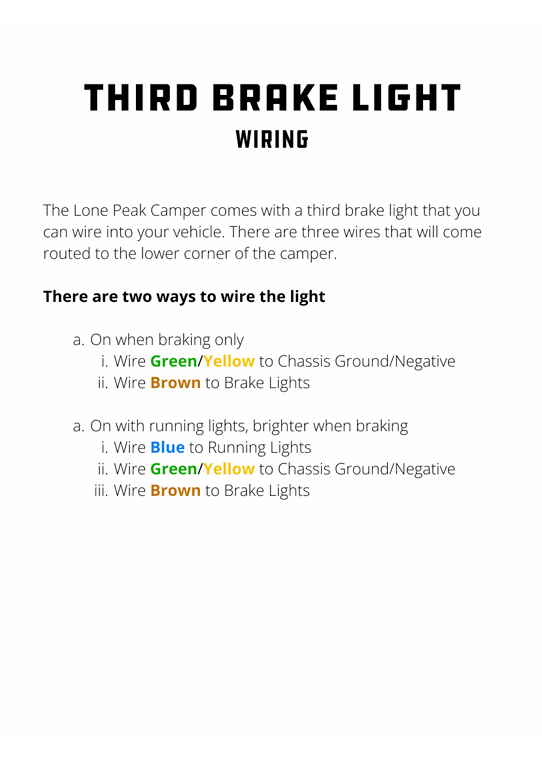

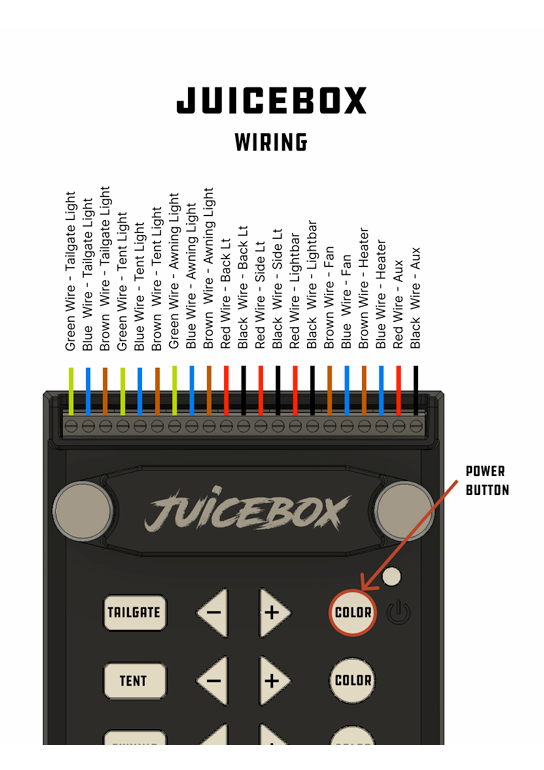

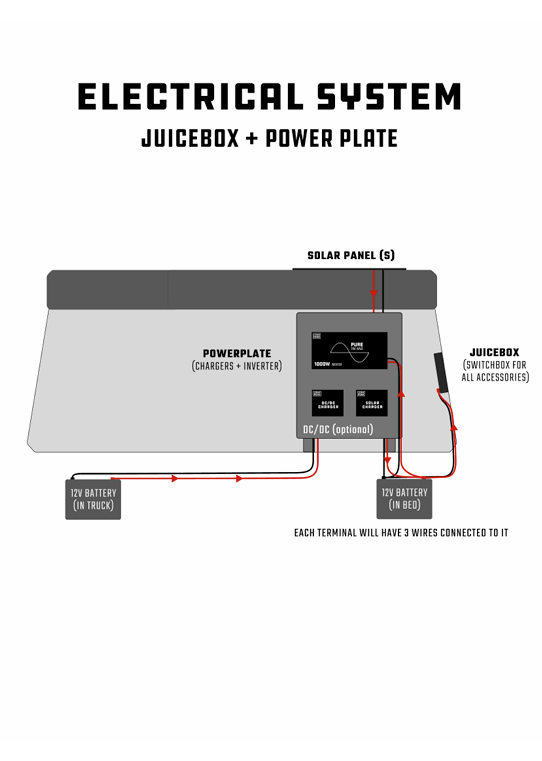

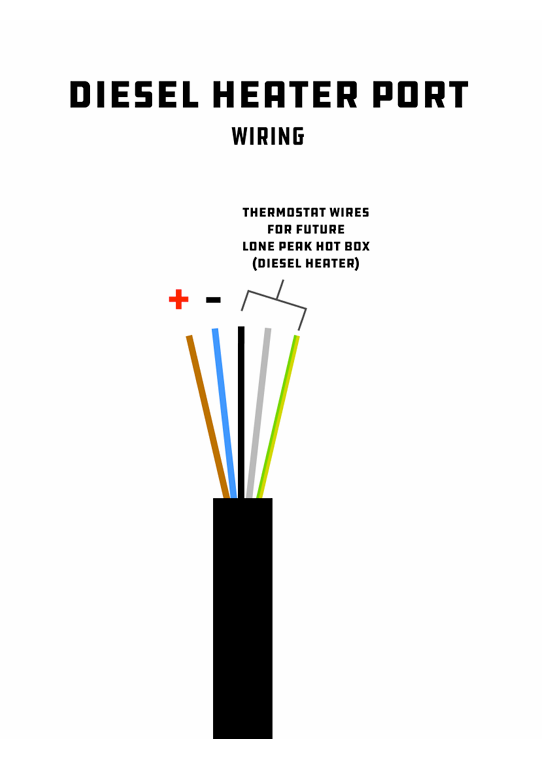

diesel heater port electrical system Juicebox third brake light
