1000W Inverter Details

1000W Inverter Details

Updated on Oct 14, 2025

sidebar-icon sidebar-icon

Introduction of power inverter

1.This inverter power supply adopts SPWM technology controlled by MCU micro-processing, pure sine wave output, and the waveform is indeed pure. The unique dynamic current loop control technology ensures reliable operation of the inverter.

2.Load adaptability, including inductive load, capacitive load, resistive load, Hybrid load. High performance at over-load capacity and impact resistance.

3.It has perfect protection functions such as input over voltage, under-voltage, overload, overheat, and output short circuit etc.

4.The sine wave inverter adopts LCD liquid crystal display mode, and the state is clear at a glance.

5.Stable performance, safe and reliable, long service life.

Product Description

1. Efficiency: 85%-92%

2. The service life can reach a decade

3. Working noise is low and the efficiency is high

4. Strong ability of resist concussion

5. Good load ability: Inductive , capacitive load and Hybrid load

6. Protection: Battery Low Alarm/Battery Shut down/Over Voltage/Over Temp/ Output

Short/Input polarity reverse/Overload



1000W Pure Sine Wave Inverter — Product Parameters

Rated Power: 1000W Continuous (2000W Peak)

Electrical Specifications

  • Input Voltage: DC 12V / 24V / 48V / 60V / 72V

  • Operating Range:

    • 12V model: DC10–15

  • Output Voltage: AC 120V or 220V

  • Output Frequency: 50Hz / 60Hz (Selectable)

  • Waveform: Pure Sine Wave 1000W

  • Peak Power: 2000W

  • Efficiency: ≥ 90%

  • No-Load Current: ≤ 0.6A

  • Overload Protection: 1100±50W

Protection & Safety

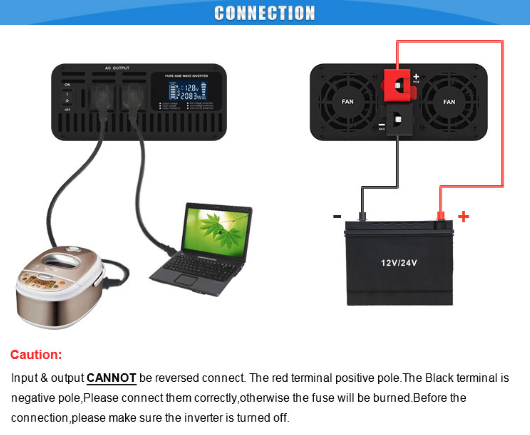

  • Input reverse-connection protection (fuse)

  • Low-voltage protection: 60V ±0.3V

  • Recovery voltage: 72V ±0.3V

  • High-voltage protection: 90V ±0.3V

  • Over-temperature protection: 80°C ±5°C

  • Overload protection: 1100W ±50W

  • Total Harmonic Distortion (THD): ≤ 3%

Cooling & Environment

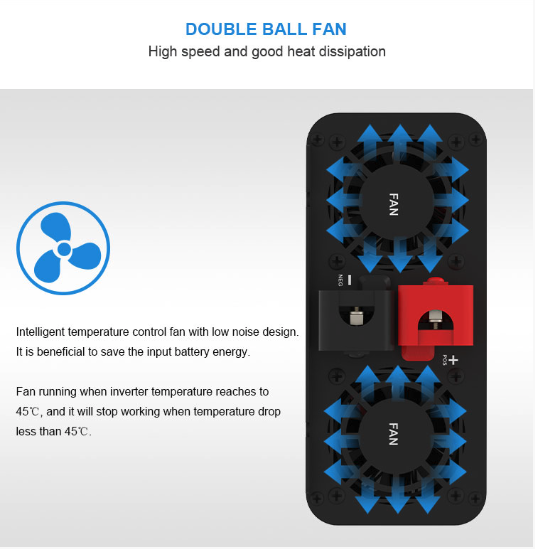

  • Intelligent temperature-controlled air cooling

  • Working Temperature: −5°C to +50°C

  • Storage Temperature: −20°C to +70°C

Mechanical Details

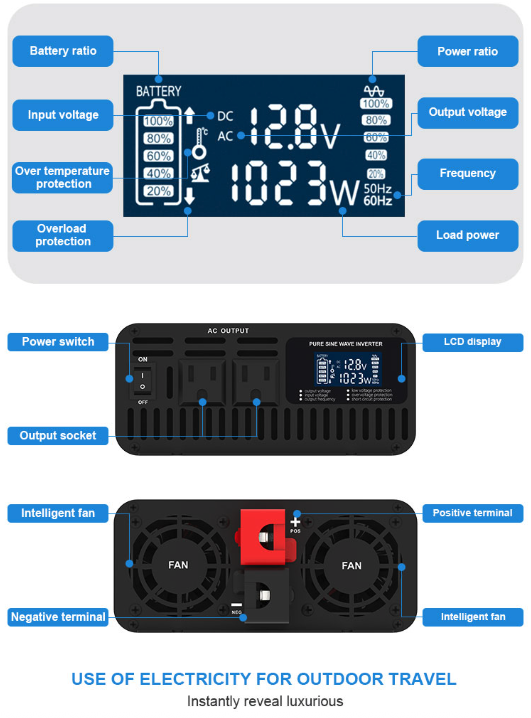

  • Display: LCD digital display

  • Housing Material: Aluminum alloy

  • Input Terminal: Screw terminal posts

  • Output Socket: Configurable (US or EU standard)

  • Dimensions: 310 × 173 × 76 mm

  • Weight: 3.2 kg
